Crash cushion

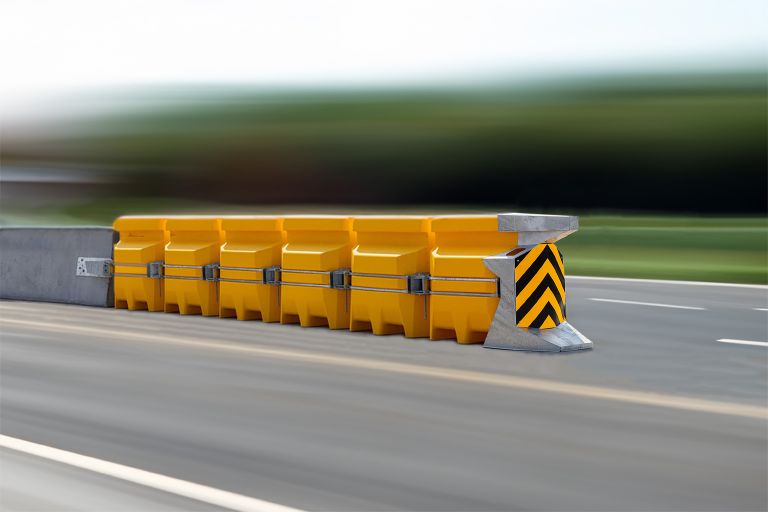

The QUASH™ is a MASH compliant, non-redirective crash cushion
Key features
- Convenient dual-lifting points
- Free of internal corrodible components
- Short system length
- Empty or full handling
QUASH Crash Cushion PI Sheet EN
Key Features
-
Bottom-handling option
-
Top-handling option
-
Self-centering J-slot hinge for movable barrier applications
-
Identical absorption elements
-
Anchorless for fast installation
-
Designed for warm and cold weather
Product Description
The QUASH™ crash cushion distinguishes itself as one of the safest MASH-tested, non-redirective systems on the market. It boasts a user-friendly design and has minimal components to ensure easy handling, installation, and maintenance. Notably, it is the first system designed to safeguard movable barriers as well as portable temporary barriers.
Specifications
| MASH TL-2 | MASH TL-3 | |
|---|---|---|
| Length (A) | 16.7 ft (5.1 m) | 24 ft (7.3 m) |
| WIDTH (B) | 24 in (610 mm) | 24 in (610 mm) |
| HEIGHT (C) | 42 in (1.07 m) | 42 in (1.07 m) |
| VOLUME PER FULL ELEMENT | 450 L (119 gal) | 450 L (119 gal) |
| WEIGHT EMPTY ELEMENT | 140 lbs (63.5 kg) | 140 lbs (63.5 kg) |
| WEIGHT WATER FILLED ELEMENT | 1132 lbs (513.5 kg) | 1132 lbs (513.5 kg) |
| COMPATIBLE BARRIER END TREATMENT WIDTH | 9.5 in to 13.75 in | 9.5 in to 13.75 in |
MASH-tested
The QUASH™ has undergone successful MASH testing to ensure maximum safety. These tests rigorously assess impact performance and stability, protecting drivers and passengers in the event of a crash.
Applications
-
Work zone
Whether safeguarding a work zone with a freestanding or anchored barrier, the QUASH™ system offers a straightforward and effortless installation process. -
Movable barrier
Enhance your work zone or managed lanes operation with the QUASH™ in combination with our TALL42™ movable barrier, bringing flexibility and efficiency to the forefront.
